Semi-Demountable Torch
A Robust, High-Performance Demountable ICP Super Torch
An Inductively Coupled Plasma (ICP) torch can be a costly consumable item requiring regular maintenance and replacement, particularly with aggressive sample matrices, such as hydrofluoric acid (HF), organic solvents and high total dissolved solids (TDS).

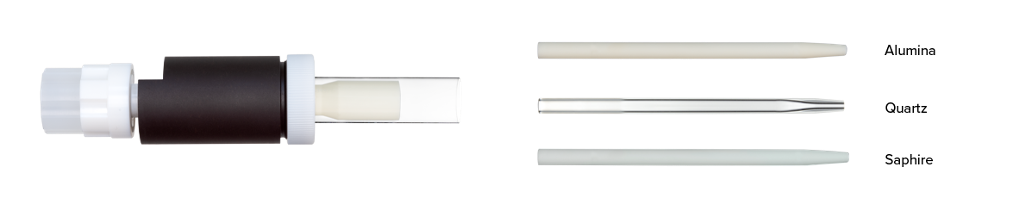

The patented D-Torch is a revolutionary demountable torch design from Glass Expansion. The D-Torch uses high precision engineering to provide the benefits of a fully demountable torch, such as lower running costs, chemical inertness and configurable injector geometry without compromising usability, performance or durability. Compared to other conventional torches, the D-Torch offers:
- Better analytical precision with the unique tapered injector design
- A choice of quartz, alumina and sapphire injectors in a range of diameters for aqueous, organic, high salt, fusions or HF containing samples
- Lower running costs as only the outer tube is replaced when it wears
- Easier cleaning and maintenance with the ability to remove the injector and outer tube, and no O-rings to degrade and go brittle
- The patented D-Torch is a revolutionary demountable super torch, which only requires you to replace the components that are warn.
Helix CT (ConstantTorque) Spray Chamber
The spray chamber is a crucial component of the ICP sample introduction system since it has a profound effect on transport efficiency, precision, and washout. Glass Expansion revolutionized spray chamber design with the Tracey and Twister single-pass and double-pass cyclonic spray chambers, providing improved transport efficiency and reduced washout. Glass Expansion’s unique Helix CT nebulizer interface features an inert PTFE seal to eliminate dead-volume giving quicker washout and higher sample throughput.

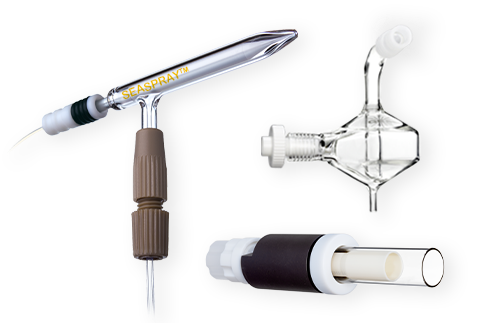

The Glass Expansion cyclonic spray chambers for the NexION ICP-MS have a:
- Double-pass Twister™ version with central baffle that rejects large droplets from the nebulizer aerosol for best short-term precision and lowest interferences
- Single-pass Tracey™ version for the highest sensitivity
Vertical wall design that improves transport efficiency and short-term precision by ensuring smooth drainage of excess sample - Positive stop on the Helix CT nebulizer interface ensures consistent nebulizer positioning in the spray chamber for reproducible long-term analytical performance.
- Side-wall groove that improves drainage and prevents sample re-nebulization
- Inert PTFE seal (no orings) that cannot stick to the nebulizer and is easier to clean
- Low volume (20mL) options are available for high sample throughput

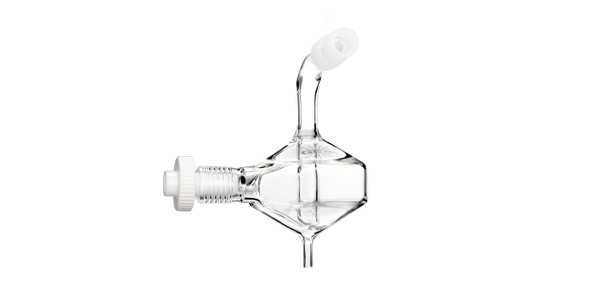

Single-pass Tracey™

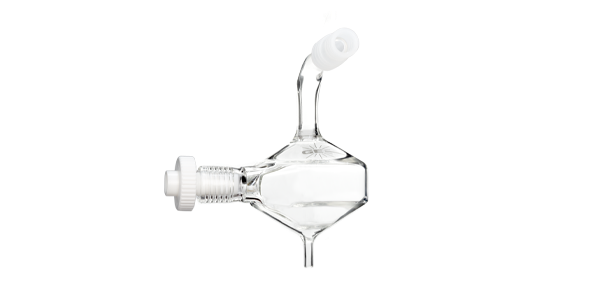

Double-pass Twister™
High Efficieny Sample Introduction System for ICP-MS
Single-cell analysis by ICP-MS (SC-ICP-MS) is enhancing the basic understandings in cellular biology, oncology and drug discovery. SC-ICP-MS allows quantification of metals in individual biological cells at ultra-low detection levels not previously seen in other techniques. SC-ICP-MS can be used to study disease aetiology, provide a better understanding of diseased cell states and develop new drug treatments for better patient outcomes.
The Glass Expansion High Efficiency Sample Introduction System features:
- An on-axis, high-efficiency laminar flow spray chamber
- A MicroJet Make-up gas adapter that provides high velocity sheathing gas that entrains and shapes the nebulizer aerosol plume to prevent cell deposition on the spray chamber walls
- High efficiency, low uptake, concentric glass nebulizer designed to efficiently nebulize single-cell suspensions without compromising cell integrity
